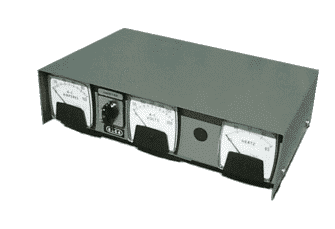

| MMP 1 | |
| Single Phase | |
| 16"W x 4"H x 10"D | |
| For Systems Rated: | Standard Equipment: |
| 120 Volts, 1 Phase, 2 Wire 120-240 Volts, 1 Phase, 3 Wire 0-50 Amps , 0-100 Amps, 0-200 Amps |
NEMA-1 Heavy Gauge Steel Enclosure AC Ammeter, 50, 100, or 200 Amp Scale, 3 1/2", 2% AC Voltmeter, 0-300 Volt, 3 1/2", 2% AC Frequency Meter, Dial Type, 45-65 Hertz, 3 1/2", 2% Ammeter Switch, 3 Positions, Line 1, Line 2 and Off Current Transformers, Shipped Loose, 200/5 Standard Vibration Isolators (4), Heavy Duty, Shipped Loose Fuse Holder with Fuses, 2 Pole Terminal Strip |
| back to top | |
| MMP 2 | |
| Three Phase | |
| 16"W x 4"H x 10"D | |
| For Systems Rated: | Standard Equipment: |
| 120/208-139/240 Volts or 277/480 Volts, 3 Phase, 4 Wire 0-50 Amps , 0-100 Amps, 0-200 Amps |
NEMA-1 Heavy Gauge Steel Enclosure AC Ammeter, 50, 100, or 200 Amp Scale, 3 1/2", 2% AC Voltmeter, 0-300 Volts, or 0-600 Volts, 3 1/2", 2% AC Frequency Meter, Dial Type, 45-65 Hertz, 3 1/2", 2% Ammeter Switch, 4 Positions, Line 1, Line 2, Line 3,and Off Current Transformers, Shipped Loose, 200/5 Standard Vibration Isolators (4), Heavy Duty, Shipped Loose Fuse Holder with Fuses, 3 Pole Terminal Strip |
| back to top | |

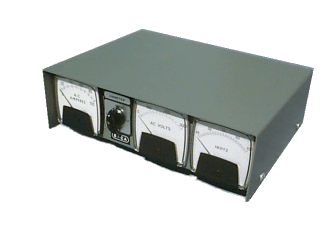

| MMP 3 | |
| Single Phase | |
| 16"W x 4"H x 10"D | |
| For Systems Rated: | Standard Equipment: |
| 120 Volts, 1 Phase, 2 Wire 120-240 Volts, 1 Phase, 3 Wire 0-50 Amps , 0-100 Amps, 0-200 Amps |
NEMA-1 Heavy Gauge Steel Enclosure AC Ammeter, 50, 100, or 200 Amp Scale, 3 1/2", 2% AC Voltmeter, 0-300 Volt, 3 1/2", 2% AC Frequency Meter, Dial Type, 45-65 Hertz, 3 1/2", 2% Ammeter Switch, 3 Positions, Line 1, Line 2 and Off Current Transformers, Shipped Loose, 200/5 Standard Vibration Isolators (4), Heavy Duty, Shipped Loose Fuse Holder with Fuses, 2 Pole Terminal Strip |
| back to top | |
| MMP 4 | |
| Three Phase | |
| 16"W x 4"H x 10"D | |
| For Systems Rated: | Standard Equipment: |
| 120/208-139/240 Volts or 277/480 Volts, 3 Phase, 4 Wire 0-50 Amps , 0-100 Amps, 0-200 Amps |
NEMA-1 Heavy Gauge Steel Enclosure AC Ammeter, 50, 100, or 200 Amp Scale, 3 1/2", 2% AC Voltmeter, 0-300 Volts, or 0-600 Volts, 3 1/2", 2% AC Frequency Meter, Dial Type, 45-65 Hertz, 3 1/2", 2% Ammeter Switch, 4 Positions, Line 1, Line 2, Line 3,and Off Current Transformers, Shipped Loose, 200/5 Standard Vibration Isolators (4), Heavy Duty, Shipped Loose Fuse Holder with Fuses, 3 Pole Terminal Strip |
| back to top | |
| MMP 5 | |
| Single Phase | |
| 16"W x 4"H x 10"D | |
| For Systems Rated: | Standard Equipment: |
| 120 Volts, 1 Phase, 2 Wire 120-240 Volts, 1 Phase, 3 Wire 0-50 Amps , 0-100 Amps, 0-200 Amps |
NEMA-1 Heavy Gauge Steel Enclosure AC Ammeter, 50, 100, or 200 Amp Scale, 3 1/2", 2% AC Voltmeter, 0-300 Volt, 3 1/2", 2% AC Frequency Meter, Dial Type, 45-65 Hertz, 3 1/2", 2% Ammeter Switch, 3 Positions, Line 1, Line 2 and Off Current Transformers, Shipped Loose, 200/5 Standard Vibration Isolators (4), Heavy Duty, Shipped Loose Fuse Holder with Fuses, 2 Pole Terminal Strip |
| back to top | |

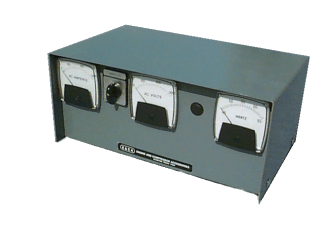

| MMP 6 | |
| Three Phase | |
| 16"W x 4"H x 10"D | |
| For Systems Rated: | Standard Equipment: |
| 120/208-139/240 Volts or 277/480 Volts, 3 Phase, 4 Wire 0-50 Amps , 0-100 Amps, 0-200 Amps |
NEMA-1 Heavy Gauge Steel Enclosure AC Ammeter, 50, 100, or 200 Amp Scale, 3 1/2", 2% AC Voltmeter, 0-300 Volts, or 0-600 Volts, 3 1/2", 2% AC Frequency Meter, Dial Type, 45-65 Hertz, 3 1/2", 2% Ammeter Switch, 4 Positions, Line 1, Line 2, Line 3,and Off Current Transformers, Shipped Loose, 200/5 Standard Vibration Isolators (4), Heavy Duty, Shipped Loose Fuse Holder with Fuses, 3 Pole Terminal Strip |
